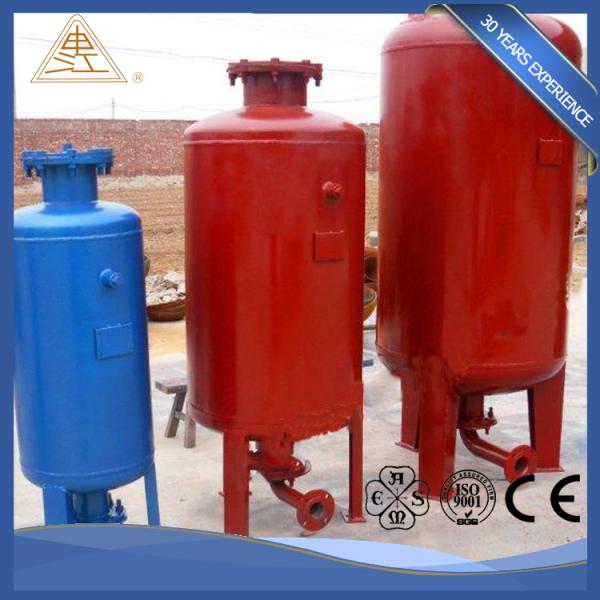

Water Pump System Diaphragm Pressure Tank , High Pressure Water Storage Pressure Tank

Water Pump System Diaphragm Pressure Tank , High Pressure Water Storage Pressure Tank

Brand Name : Shengjiang
Model Number : SJ0310
Certification : ASME
Place of Origin : Shanghai China
MOQ : 1 piece
Price : Negotiation
Payment Terms : D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability : 2000 pieces one month
Delivery Time : 15 days after received payment
Packaging Details : plywood packing for each tank
Material : Carbon steel or Stainless steel
Capacity : 0.3m3-100m3
Pressure : 0.8MPa≤p<10MPa
Certificate : ASME / GB150
Application : pumping system
Install type : Vertical /Horizontal
Color : Red and Blue
Contact Now

working principle of diaphragm pressure tank:


Wide availability of liquid filtration equipment. It can effectively remove liquid particles of different sizes, so as to achieve liquid filtration, purification, separation, recycling purposes.


Performance characteristics

The small size pressure-stabilization expension tank works as a special device to set the expansion section and gas pressure stablization section seperately,therefore,majority of the expansion volume could be storage expansion tank,the ultilization volume could reach 90% of the total volume,the whole bulk and height becomes smaller and smaller,which saves 50% to 60% of the whole occupation,it is also be convenient for the installation and working for the equipment.


Application scope:

1. continuous heating water system.

2. industrial and residential continuous heating system.

3. high temperature water circulating system.

4.hot and cold water system.


More specification for your choice !!!

Diameter (mm)Pressure (MPA)Total Height (mm)Total Weight (Kg)Thickness (mm)Total Capacity (m3)Volume (Liter)Outlet Diameter (mm)
4001.01230973.50.093050
1.6111550
6000.617201443.50.329050
1.01814.550
1.6233750
8000.6223022840.77217100
1.03236100
1.63236100
10000.6237035151.28400100
1.04787100
1.64907100
12000.6274157262.2677100
1.06056100
1.67668100
14000.6296972163.3970100
1.07366100
1.610369100
